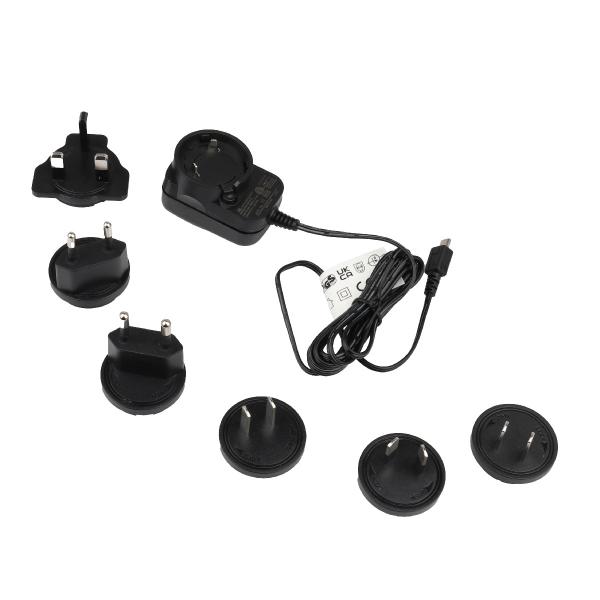

    5v Dc Power Adapter Interchangeable Plug Power Adapter Under IEC61558 Approval

    Ask Lasest Price
    Brand Name : Analog or ODM
    Model Number : GQ05-050100-AX
    Certification : UL/GS/SAA/UKCA/KC/CCC/PSE
    Price : negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    5v Dc Power Adapter Interchangeable Plug Power Adapter Under IEC61558 Approval

    5v Dc Power Adapter Interchangeable Plug Power Adapter Under IEC61558 Approval


    Model List:


    Model NameOutput Voltage(VDC)Output Current (A)Output Power(W )
    GQ/BZ05-050-YYY-WBU50.01~1.507.50
    GB/BZ=ANALOG Company Code3.6~6.00.01~1.507.50
    07=Out Power 7W Series6.1 ~12.00.01~1.207.50
    XXX=Output Voltage12.1~16.00.01~0.607.50
    YYY=Output Current16.1~24.00.01~0.467.50
    WW=Plug Type

    Application: Reading lamp and other home appliance or smart devices



    Specification Datasheet Table


    Output

    Voltage

    5.0V
    Output Current1.0A
    Output Power5.0W
    Ripple/Noise
    300mVp-p Max.
    Custom Design Available
    Input Voltage & Frequency90VAC~264VAC, 47~63HZ
    Maximum AC CurrentPlease refer to the specification datasheet for approval
    Input Inrush Current40A(RMS) Max, full load tested @AC230V 50HZ
    EfficiencyVICustom Design Available
    ProtectionOVP,OCP,OTP,SCP & Input Protection
    Environmental requirementsOperating Temperature0~40 ℃,
    Storage Temperature-40~70 ℃
    Operating Humidity5%~90% Non-condensing
    Storage Humidity5%~90% Non-condensing
    ReliabilityWarranty2 year (about 2.28 years for 24-hour-operation a day)Custom Design Available
    MTBF>20,000 hour
    Insulation Resistanc> 30MΩ@500VDC; 60SCustom Design Available
    Hi-PotMeet different safety standard
    Leakage Current0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulationsRoHS,REACH,PAHS
    Safety StandardCertificateUL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR/CCCCustom Design Available
    StandardsIEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...Custom Design Available
    EMCEN55014-1/EN55014-2 compliance
    ESD(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)Custom Design Available
    Surge±1KV @ common or different modeCustom Design Available


    5v Dc Power Adapter Interchangeable Plug Power Adapter Under IEC61558 Approval

    FAQ


    1.How about the energy efficiency?
    All our adapters can meet level VI efficiency and ROHS,REACH compatible.


    2.How about sample? For free?
    Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.


    3.How long can we get samples?
    3 ~ 5 days for regular adapters or led driver.
    And 20-25 work days for mass production.


    4.What is MOQ?
    Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
    like big quantity for the whole order but small quantity for trial order of each model.


    5.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
    Yes, OEM or ODM is available.


    What Can we do ?


    • AC DC Power Adapters
    • Switching Power Adapter
    • Wall mount Power Adapters
    • Desktop Power Adapters
    • Battery Chargers
    • Power Supply Units
    • Open Frame Switching Power Supply
    • Custom Design
