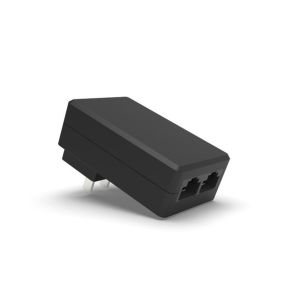

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points

PoE Power Supply combines power and data and delivers them to a powered device over one Ethernetcable. Designed for power-hungry devices, provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24VDC /48 VDC power inputs for power redundancy and operational flexibility. wide temperature range design makes it perfect for operating in critical industrial environments.

Details:

1. Supports all IEEE802.3at- and IEEE 802.3af- compliant POE devices( Wireless LAN access points and bridges, VOIP( voice over Internet Protocol) telephones, IP surveillance cameras)

2. Automatic Detection and Protection of non-standard Ethernet terminals

3. Compact design fits easily in WLAN Access point and IP cameras installations

Product Specification:

Product model: GQ12-240050-AC

Energy efficiency grade: VI

Input: AC100-240V 50 / 60Hz 0.35A Max

Output: 48V 0.35A 16.8w/48V 0.35A 14.4w

Output voltage ripple and noise: 300mvp-p (maximum)

Output polarity: 45 is positive, 78 is negative

Product size: L70*W40*H27mm

Power cord length: 100cm

MTBF: more than 50000 hours

Safety standard: ul60950; FCC Part 15 Subpart B Class B IEC/EN60335-1; IEC/EN61558-2-16

Certification: CB CE GS UL FCC CCC

Product Features

The 48V POE power supply has multi-layer protection,just name a few of them. Input over-voltage protection, output over-voltage protection, over-current short-circuit protection for each output, and has functions such as conducted interference (CE) and radiated interference (RE).

Comply with EN55022/CLASSB standard, WER OUT (13.26) data is directly transferred out, 45.78 pin provides 48V power supply (45+, 78-)

PoE Power Adapters is a kind of adapter designed for Ethernet application. It delivers power to end device through four idle line of Ethernet cable.To prevent the tiny signal line get hurt, the rated current allowed is 350mA,the trip point of over current proteetion is around 450mA. At no load condition, this series meets green power regulation.

Advantages of POE Power

1. It is easy to install and manage. Customers themselves can safely mix legacy and PoE devices on the network, coexisting with existing Ethernet cables

2. It is easy to manage the network equipment.

3. It is safe. Because the PoE power supply end device will only supply power to the device that needs power supply. The Ethernet cable will only have voltage present when the device that needs power is connected, thus eliminating the risk of leakage on the line.

4. It saves costs. Because it only needs to install one cable instead of two. In many cases, installation is required where it is difficult to deploy AC power. With the increase of Ethernet-connected devices, it will greatly reduce the cost of deployment and simplify its manageability if there is no need to provide local power to the device.

5. The addition of a network lightning protection module to POE products can ensure the safety of front-end equipment in thunderstorms. The network cable does not exceed 100 meters, and it is not easy to form induced potential to damage the electronic components of the camera.

6. When the POE-powered network video surveillance system adopts centralized power supply, because the power receiving module has the function of supporting the power identification circuit, it will not cause waste of electric energy and effectively save energy.

Protection:

Applications:

Our Products have obtained global approvals including UL, CUL, TUV/GS, EMS, CE, CCC, PSE, SAA & Gost Mark…etcOur Products have obtained global approvals including UL, CUL, TUV/GS, EMS, CE, CCC, PSE, SAA & Gost Mark…etc

Analog Power Electronic is specialized in One-stop OEM/ODM Solution for AC DC Power Adapters ,Lithium battery USB chargers and switching power supply with EU , US and global safety certificate,VI energy efficiency and RoHS, REACH , PAHS compliance,which are widely used in small household/ home appliances,Led lighting,IT communication and AV products,beauty appliances & consumer electronic industries etc.

Since founded in 2017,we strictly adhere to ISO 9001:2008 quality management system . Manufacturing plant area is 12,000 square meters and the annual production capacity exceeds 21,000,000 PCS.We have more than 40 R&D engineers and 100 management personnel, and 420 employees on the production line.

With excellent product quality and comprehensive services,ANALOG switching adapters & chargers are welcomed worldwide thanks to safety certification approved by GS/UKCA/CE/UL/CCC/CQC/SAA/PSE/KC/ICBR/BSMI.etc international safety certificates. Our Customer groups covering many countries and regions around the world, including but not limit to well-known brand companies such as Shark,,invitop,Wilit, Interplus,ELECTROLUX,LG,Panasonic,Haier,Midea, Such as Robotic vacuum cleaners,floor cleaning robot,window cleaning robot , air purifiers, dehumidifiers, humidifiers, home electric diffuser, mosquito killers, table lamp, lighting, STB TV box,gifts,etc .

Our adapters are well recognized and praised by consumers especially in EU,US Japan and Korea market.In 2019, the turnover exceeds 100 million Yuan.The export share is rising year by year, in the year 2021, the export business accounts for more than 30%.Our products are popular in Europe, the United States, Japan, Australia, Britain, South Korea and other countries.

As a wholly-owned subsidiary of "Dongguan Gangqi Group", we adhere to the business philosophy of diversification, leapfrog development, and group operation.Dongguan Analog Power Electronics Co., Ltd follows the business tenet of "customer first, quality first, permanent performance, innovation and change, and comprehensive service"; promotes the quality concept of "comprehensive quality control, brave innovation, quality first, and customer first"; adopts advanced management Model, establish a responsibility system that builds full post responsibilities. All employees are united, enterprising, and advancing with the times. While actively understanding the market and customer requirements, we continue to absorb and master new technologies and concepts; we have won the recognition of domestic and foreign customers with high-quality products and perfect after-sales service. Multiplication pays more attention to the cultivation of the quality of employees and the shaping of quality awareness. While achieving customer satisfaction, we also strives to exceed customer expectations.

We are looking forward to a joint and long-term cooperative partnership with you!
